| A three-component set up that makes a fully automated, inline system for packaging 40 pound cheese blocks. |
| Worker Safety Improvement |
| Reduces worker safety risks by eliminating repetitive and labor-intensive process of loading heavy products into bags by hand. |
| Plug-In Flexibility |
| Variety of plug-in modules available including a pick-and-place, alignment chute, bag opener, gripper system, and spreader plates. |
| The CRYOVAC® brand Cheese Block Packaging System brings the efficiency and consistency of automation to North American dairy operations. |
| Sold together, this 3-piece equipment group is designed to handle CRYOVAC® gusseted cheese pouches, that come ready to be inserted into a stainless steel cassette. |
| The CL20 Cheese Block Loader receives 40# blocks from forming towers and inserts them into gusseted pouches. The RG20 Bag Re-gusset Equipment folds and prepares the bags for vacuum sealing. And the UBT Block Turner provides smooth rotation of bagged, block cheese by 90 or 180 degrees using a third of the space that standard conveyors require. |
| Automating the process of bagging 40# block cheese reduces labor risks associated with repetitive motion and high stress positions while moving heavy objects. Mechanical processes create consistent product positioning in each bag, which helps ensure consistent sealing and product protection for optimized yield. |
| Features and Benefits |
| *Resource allocation improvement |
| *Labor injury risk reduction by eliminating repetitive or high stress positions |
| *Fast, easy product and bag changeovers |
| *Easy-to-use operator interfaces |
| *Wide range of plug-in modules that add features and flexibility depending on operational need |
| Specifications | |
| CRYOVAC® Cheese Block Equipment complies with FDA requirements for food packaging. Certificate available on request. | |

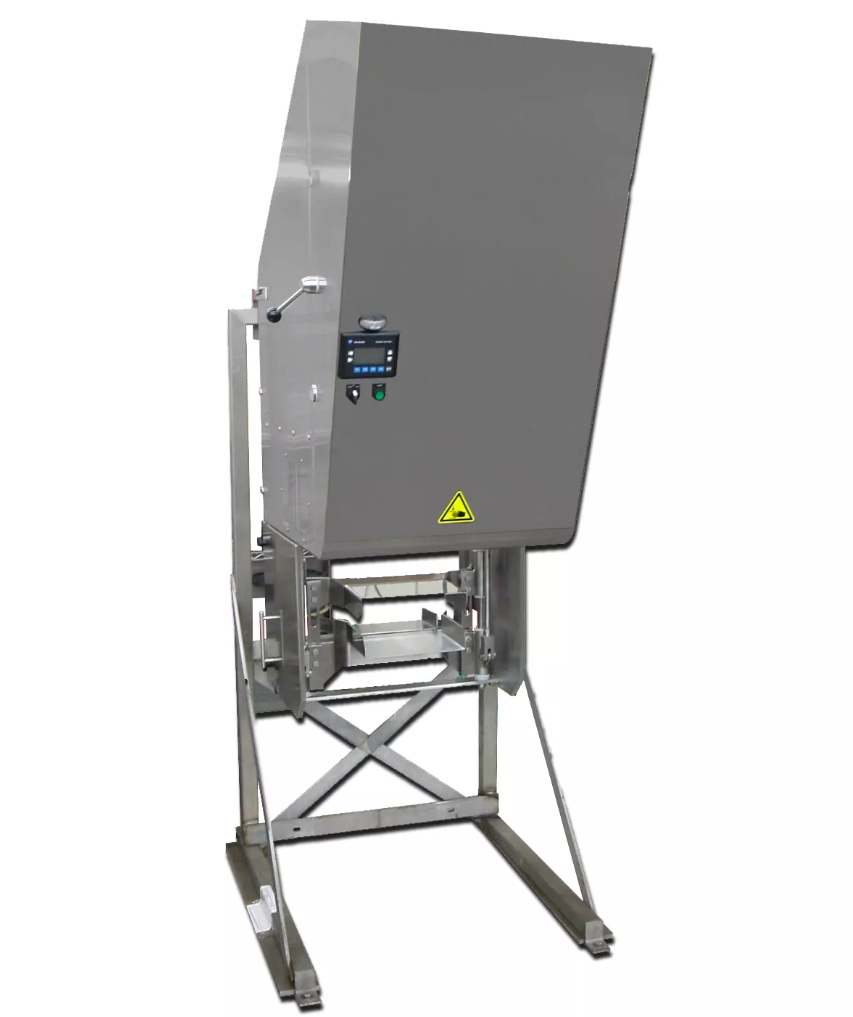

| CRYOVAC® Brand CL20 Automated Cheese Block Bag Loader | |
| Package Size: | Widths: 11” (277 mm) |
| Length: 24” (620 mm) | |
| Side Gussets: 7 3/8” (187 mm) | |
| Product Weight Max: | 40 lbs |
| Speed: | up to 2 cycles per minute |
| Electrical Voltage: | 24 VDC, 2 AMP |
| Air Requirements: | 90 PSIG, 10mm line |
| CRYOVAC® Brand RG20 Bag Re-Gusset Machine | |
| Package Size: | Widths: 11” (277 mm) |
| Length: 24” (620 mm) | |
| Side Gussets: 7 3/8” (187 mm) | |
| Product Weight Max: | 40 lbs |
| Speed: | up to 6.5 cycles per minute / 400 blocks per hour |
| Electrical Voltage: | 3-phase, 240 VAC / 480 VAC, 60 Hz |
| Air Requirements: | 90 PSIG, 10mm line |
| CRYOVAC® Brand UBT20 Universal Block Turner | |
| Package Size: | Widths: 11” (277 mm) |
| Length: 24” (620 mm) | |
| Side Gussets: 7 3/8” (187 mm) | |
| Product Weight Max: | 40 lbs |
| Rotation: | 90° or 180° |
