| High-speed, fully automated bagging machines for packaging slicing logs of smoked & processed meats, hams, and cheese. |
| Worker Safety Improvement |
| Reduces worker safety risks by eliminating repetitive and labor-intensive process of loading heavy products into bags by hand. |
| Production Flexibility |
| Models include options that run a variety of bag type and product sizes from fresh meat to smoked & processed meats to block cheese. |

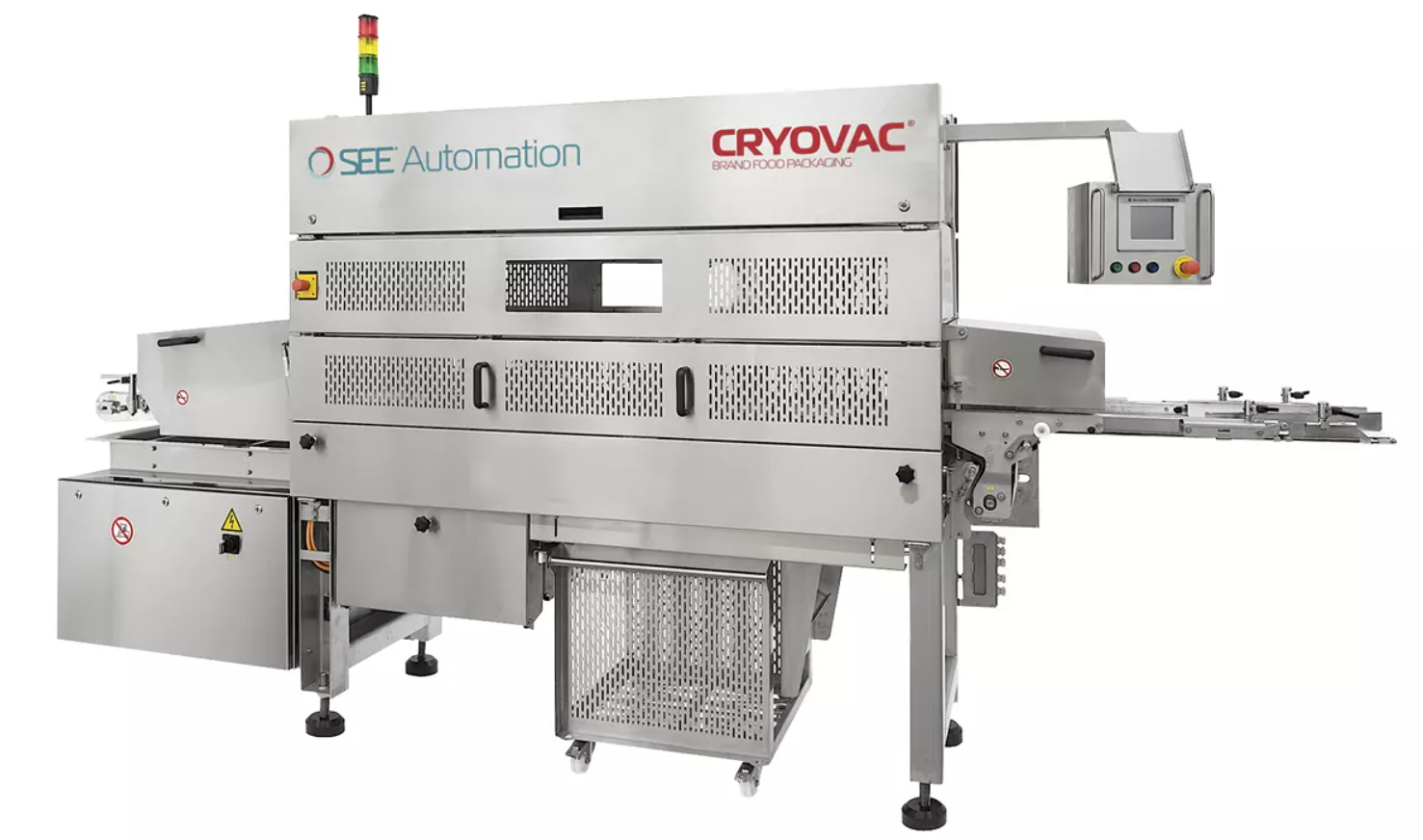

| CRYOVAC® brand Automatic Bag Loaders bring production efficiency to the process of preparing large, heavy food items for primary packaging. |
| While the AL75 and AL101 are high-speed bagging systems for deli slicing logs and fresh meats respectively, the CL20 is a specialized machine that inserts 40# cheese blocks into gusseted pouches. |
| Designed as components of a fully automated packaging line CRYOVAC® automatic bag loaders reduce labor risks associated with repetitive motion and high stress positions while moving heavy objects. These systems integrate easily with other CRYOVAC® equipment including conveyors, vacuum systems, and turners, and are designed for quick servicing and easy product changeovers. |
| CRYOVAC® AL75 and AL101 systems qualify for the CRYOVAC® Advanced Maintenance Program (AMP), a proactive, preventive maintenance plan that makes it easy to budget and schedule regular maintenance on your own terms, so you can avoid costly, lost production hours due to unexpected downtime. |
| Features and Benefits |
| *Resource allocation improvement |
| *Labor injury risk reduction by eliminating repetitive or high stress positions |
| *Fast, easy product and bag changeovers |
| *Easy-to-use operator interfaces |
| *Designed for integration with other pieces of equipment that can automate the entire primary packaging process |
| Specifications | |
| CRYOVAC® Automated Bagging Systems comply with FDA requirements for food packaging. Certificate available on request. Filling speeds will vary based on equipment model, package size, and product type. | |
| CRYOVAC® Brand AL75 High Speed Automated Bag Loader | |
| Package Size: | Widths: 5” – 14” (130 – 350 mm) |
| Length: 8” – 23” (200 – 600 mm) | |
| Product Height: | 2” – 6” (50 – 170 mm) |
| Product Weight Max: | 15 lbs |
| Speed: | up to 45 ppm |
| Electrical Voltage: | 3-phase, 400/460 V, 50/60 Hz |
| Air Requirements: | 0.6 MPa (6 bar), 25 CFM, ½” dedicated line |
| Product Type: | slicing logs of deli meat, hams, cheese |
| CRYOVAC® Brand AL101 Automated Bag Loader | |
| Package Size: | Widths: from 9” – 17.7” (229 – 449.5 mm) |
| Length: up to 33.5” (850 mm) | |
| Product Height: | 6” – 6.5” (150 – 170 mm) |
| Product Weight Max: | 44 lbs |
| Speed: | up to 23 ppm |
| Electrical Voltage: | 3-phase, 380/480 V, 50/60 Hz, 20 AMP |
| Air Requirements: | 0.6 MPa (6 bar) |
| Product Type: | large or primary cuts of fresh meat |
| CRYOVAC® Brand CL20 Automated Cheese Block Bag Loader | |
| Package Size: | Widths: 11” (277 mm) |
| Length: 24” (620 mm) | |
| Gusset: 7” (187 mm) | |
| Product Height: | 7” – 8” (180 – 210 mm) |
| Product Weight Max: | 40 lbs |
| Speed: | 2 cycles per minute |
| Electrical Voltage: | 3-phase, 380/480 V, 50/60 Hz, 20 AMP |
| Air Requirements: | 0.6 MPa (6 bar) |
